TNW6E/7E [ 11tons~ ] [ For large-sized trucks ] [ For chilled and frozen ]

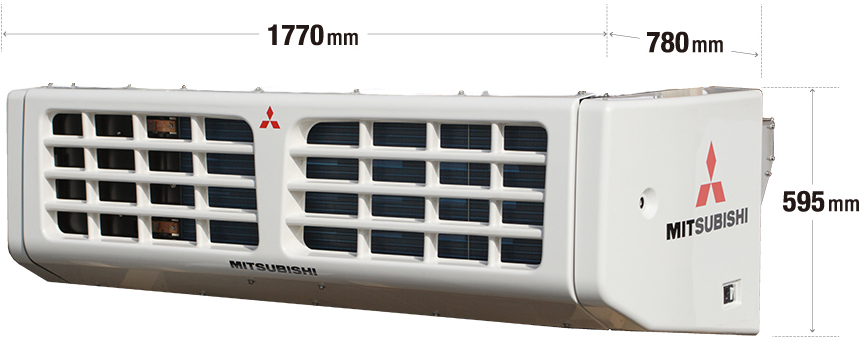

TNW6E/7E
TNW6E/7E
  • CE
  • R404A
Refrigeration Capacity
(Ambient Temp:30oC)
Temperature inside the cargo room TNW7E
0oC 7,918W
-20oC 5,042W

Diesel driven nose-mounted units with highly durable and reliable Mitsubishi Engines.

Specifications

Model TNW6E TNW7E
Refrigerant R404A R404A
Capacity
(ATP condition at 30oC ambient)		 0oC 7,228W [5,254W] 7,918W [6,341W]
-20oC 4,398W [3,201W] 5,042W [3,679W]
Airflow volume 3,000m3/h 3,000m3/h
Engine L3E2-33NCC L3E2-33NCC
Compressor CR2318 CR2323
Standby motor kW 10.0kW 10.0kW
voltage 380-400V 380-400V
phase 3Phase 3Phase
cycles 50Hz 50Hz
Weight with standby,including accessory parts 515kg 517kg
  • 1The figure within [] refers to the capability in the case of standby motor drive.
  • 2ATP certified.
