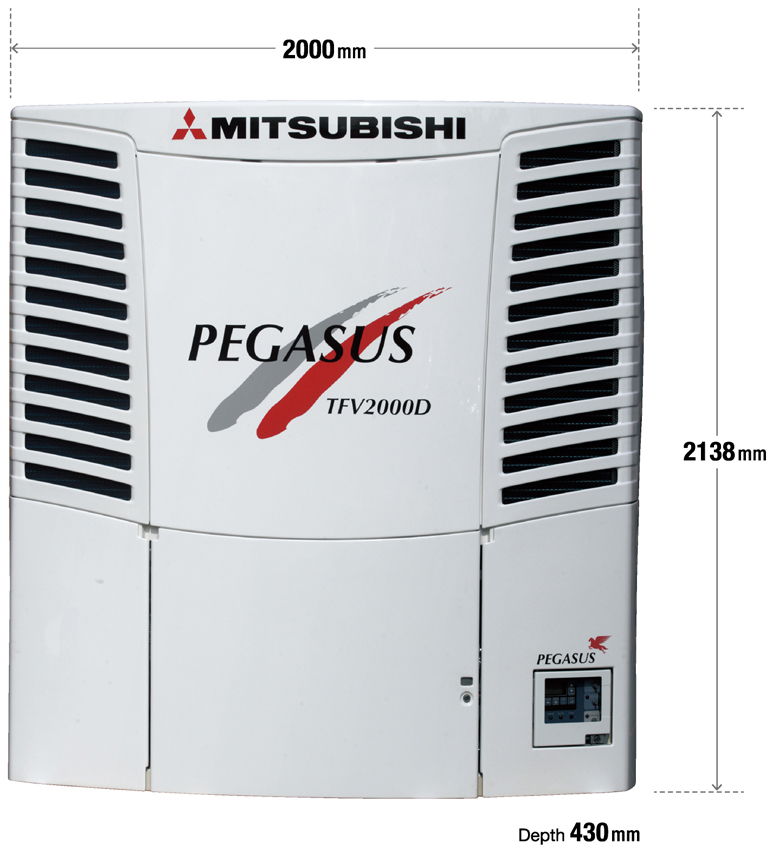

TFV2000D-E [ For trailers ] [ Single ] [ For chilled and frozen ]

TFV2000D-E
TFV2000D-E
  • CE
  • R404A
Refrigeration Capacity
(Ambient Temp:30oC)
Temperature inside the cargo room TFV2000D-E
0oC 19,209W
-20oC 9,449W

Achieving the greatest air volume, with the world's greatest capacity for its class.

Specifications

Model TFV2000D-E
Refrigerant R404A
Capacity
(ATP condition at 30oC ambient)		 0oC 19,209W [12,203W]
-20oC 9,449W [6,476W]
Airflow volume 2,831m3/h
Engine 4TNV88
Compressor CR2453
Standby motor kW 25.7kW
voltage 380-400V
phase 3Phase
cycles 50Hz
Weight with standby,including accessory parts 860kg
  • 1The figure within [ ] refers to the capability in the case of standby motor drive.
  • 2ATP certified.
