Temperature inside the cargo room TU100SAE | |
---|---|
0oC | 11,000W |
-20oC | 6,700W |

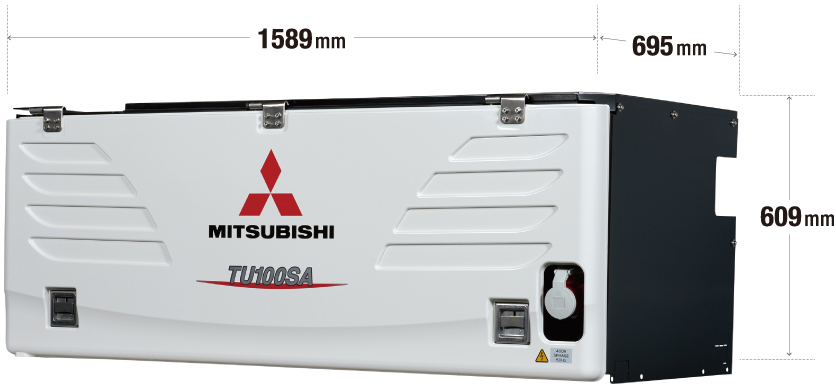

The best capacity in the class.64kg lighter and 415mm narrower than our TU73EZ unit.Due to the brilliant compact design, it has realized a width of 1600mm or less.
Model | TU100SAE | |
---|---|---|
Refrigerant | R404A | |
Capacity (ATP condition at 30oC ambient) |
0oC | 11,000W [8,685W] |
-20oC | 6,700W [4,768W] | |
Airflow volume | 3,152m3/h | |
Engine | 3TNV76 | |
Compressor | CS150E | |
Standby motor | kW | 10.4kW |
voltage | 380-400V | |
phase | 3Phase | |
cycles | 50Hz | |
Weight with standby,including accessory parts | 490kg |
