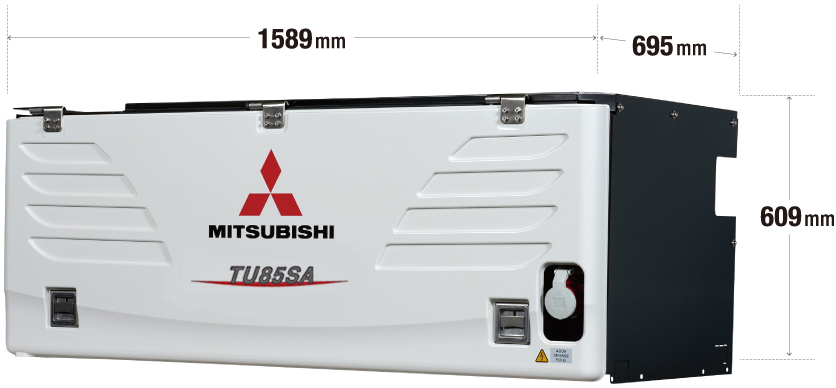

TU85SAE
[ 11tons~ ] [ For large-sized trucks ] [ Single ] [ For chilled and frozen ]
TU85SAE
Evaporator
Refrigeration Capacity
(Ambient Temp:30oC)
| Temperature inside the cargo room TU85SAE |
| 0oC |
10,298W |
| -20oC |
5,612W |
Specifications
| Model |
TU85SAE |
| Refrigerant |
R404A |
Capacity
(ATP condition at 30oC ambient) |
0oC |
10,298W [8,291W] |
| -20oC |
5,612W [4,050W] |
| Airflow volume |
3,152m3/h |
| Engine |
3TNV76 |
| Compressor |
CS130 |
| Standby motor |
kW |
10.4kW |
| voltage |
380-400V |
| phase |
3Phase |
| cycles |
50Hz |
| Weight with standby,including accessory parts |
474kg |
- 1The figure within [] refers to the capability in the case of standby motor drive.
- 2ATP certified.
