TDJS70 [ 11tons~ ] [ For large-sized trucks ] [ Single ] [ Multi ] [ For chilled and frozen ]

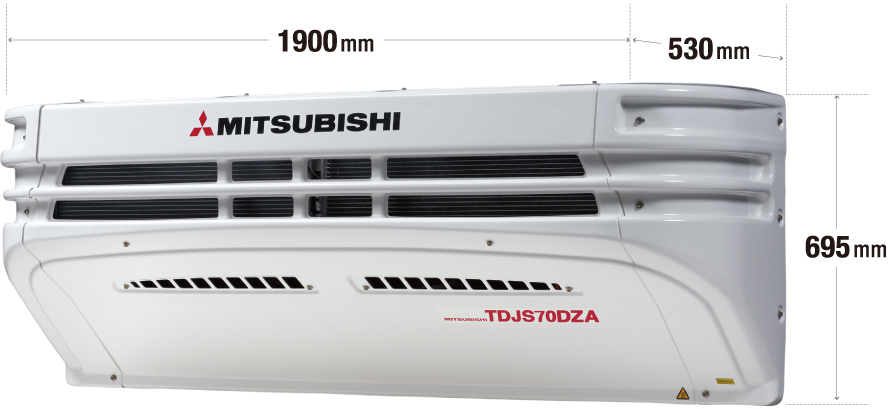

TDJS70

Refrigeration Capacity
(Ambient Temp:30^oC)

Temperature inside the cargo room TDJS70 [CS150E]
0^oC	6,990W
-20^oC	4,270W

The TDJS70 is equipped with an economizer cycle that enable good performance even in deep frozen use.

Specifications

Model		TDJS70
Model		CS90E	CS150E
Refrigerant		R404A	R404A
Capacity (ATP condition at 30^oC ambient)	0^oC	6,040W	6,990W
Capacity (ATP condition at 30^oC ambient)	-20^oC	3,424W	4,270W
Airflow volume		1,658m³/h	1,658m³/h
Compressor		CS90E	CS150E
Weight without standby, including accessory parts		126kg	128kg

1Please ask your sales representative about the specifications of models in the Multi Series.
2ATP certified.
