TU100SAE [ 11tons~ ] [ For large-sized trucks ] [ Single ] [ For chilled and frozen ]

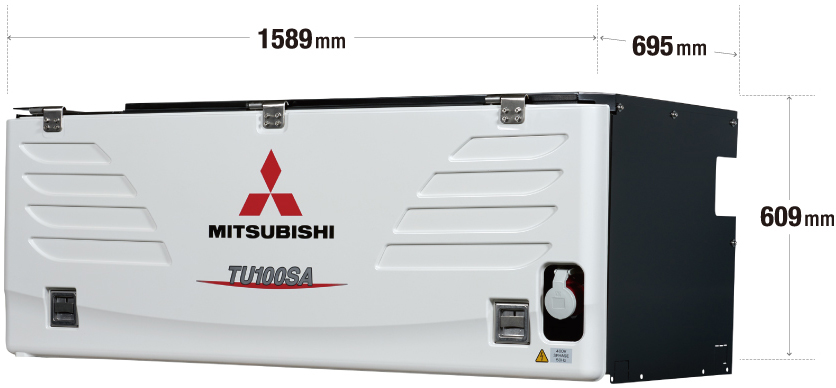

TU100SAE
TU100SAE
Evaporator
Evaporator
  • CE
  • R404A
Refrigeration Capacity
(Ambient Temp:30oC)
Temperature inside the cargo room TU100SAE
0oC 11,000W
-20oC 6,700W

The best capacity in the class.64kg lighter and 415mm narrower than our TU73EZ unit.Due to the brilliant compact design, it has realized a width of 1600mm or less.

Specifications

Model TU100SAE
Refrigerant R404A
Capacity
(ATP condition at 30oC ambient)		 0oC 11,000W [8,685W]
-20oC 6,700W [4,768W]
Airflow volume 3,152m3/h
Engine 3TNV76
Compressor CS150E
Standby motor kW 10.4kW
voltage 380-400V
phase 3Phase
cycles 50Hz
Weight with standby,including accessory parts 490kg
  • 1The figure within [] refers to the capability in the case of standby motor drive.
  • 2ATP certified.
