Temperature inside the cargo room TU100SAEM In the case of Evaporator L |
|
---|---|
0oC | 10,475W |
-20oC | 6,172W |
Various combination of the rear evaporators for two or three compartments.It can also regulate a wide range of temperatures, from frozen to chilled (heating).Capitalising on the single,compact design, the same sized unit can ensure multiple temperatures.

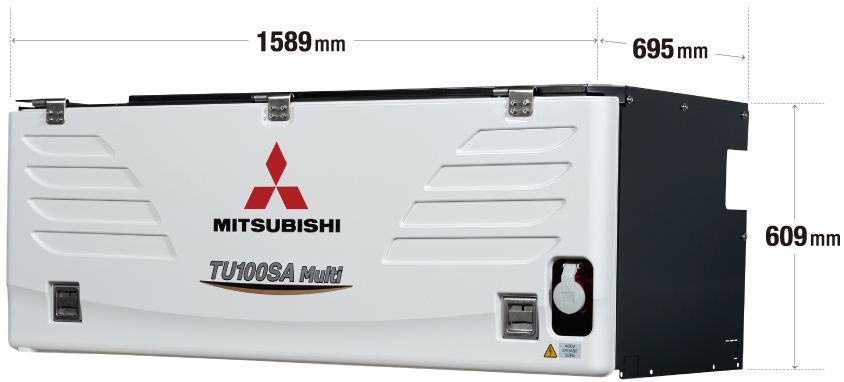

Model | TU100SAEM | |||
---|---|---|---|---|
L | M | S | ||
Refrigerant | R404A | |||
Capacity (ATP condition at 30oC ambient) |
0oC | 10,475W [8,082W] | 7,870W [6,674W] | 7,058W [5,932W] |
-20oC | 6,172W [4,860W] | 4,850W [3,855W] | 4,258W [3,422W] | |
Airflow volume | 2,800m3/h | 1,616m3/h | 1,220m3/h | |
Engine | 3TNV76 | |||
Compressor | CS150E | |||
Standby motor | kW | 10.4kW | ||
voltage | 380-400V | |||
phase | 3Phase | |||
cycles | 50Hz | |||
Weight with standby,including accessory parts | +485kg | +466kg | +460kg |
