TFV2000DM-E [ For trailers ] [ Multi ] [ For chilled and frozen ]

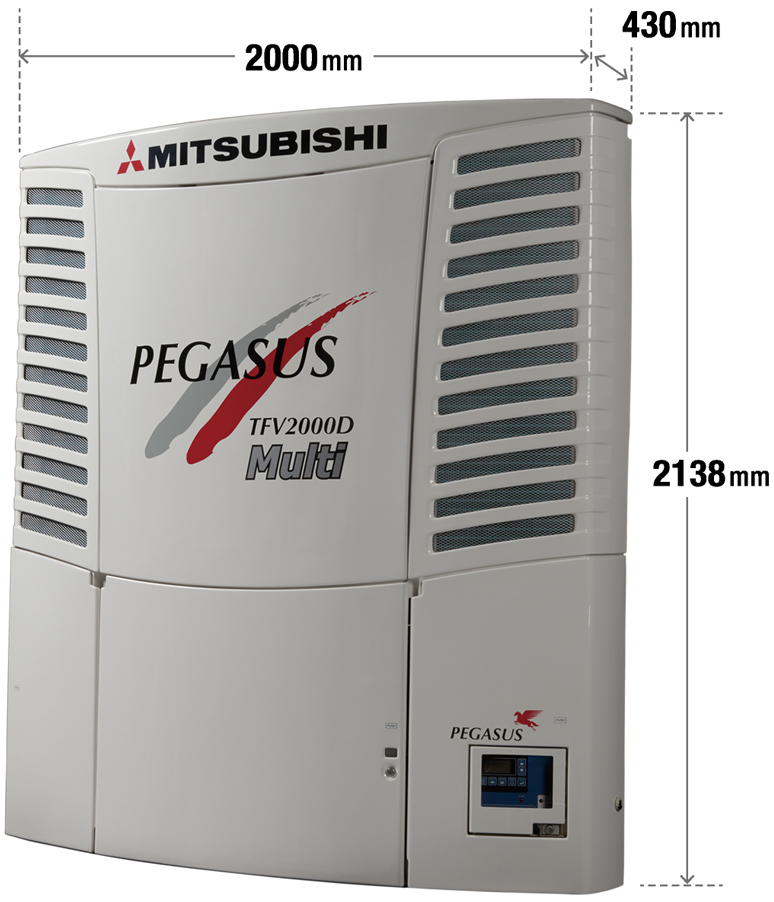

TFV2000DM-E
TFV2000DM-E
  • CE
  • R404A
Refrigeration Capacity
(Ambient Temp:30oC)
Temperature inside the cargo room TFV2000DM-E
In the case of Evaporator L
0oC 11,285W
-20oC 5,939W

Specifications

Model TFV2000DM-E
L M S
Refrigerant R404A
Capacity
(ATP condition at 30oC ambient)		 0oC 11,285W [10,478W] 9,122W [8,400W] 7,842W [7,180W]
-20oC 5,939W [5,353W] 5,414W [4,782W] 4,820W [4,250W]
Airflow volume 2,615m3/h 1,314m3/h 915m3/h
Engine 4TNV88
Compressor CR2453
Stanby motor kW 25.7kW
voltage 380-400V
phase 3Phase
cycles 50Hz
Weight with standby, including accessory parts +972kg +953kg +947kg
  • 1L/M/S : Evaporator Size
  • 2The figure within [ ] refers to the capability in the case of standby motor drive.
