TNW4E/5E [ 4~8tons ] [ For medium-sized trucks ] [ For chilled and frozen ]

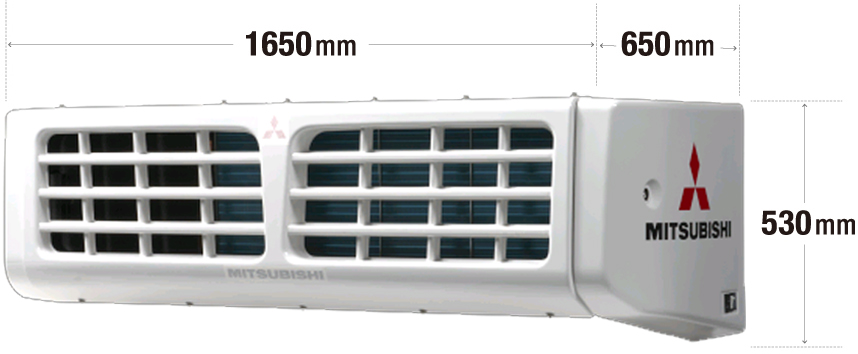

TNW4E/5E

Refrigeration Capacity
(Ambient Temp:30^oC)

Temperature inside the cargo room TNW5E
0^oC	6,235W
-20^oC	3,238W

Diesel driven nose-mounted units with highly durable and reliable Mitsubishi Engines.

Specifications

Model		TNW4E	TNW5E
Refrigerant		R404A	R404A
Capacity (ATP condition at 30^oC ambient)	0^oC	5,291W [3,776W]	6,235W [4,832W]
Capacity (ATP condition at 30^oC ambient)	-20^oC	2,973W [2,188W]	3,238W [2,588W]
Airflow volume		2,100m³/h	2,100m³/h
Engine		L2E-J231NCD	L2E-J231NCE
Compressor		CR2318	CR2318
Standby motor	kW	8.9kW	10.0kW
	voltage	380-400V	380-400V
	phase	3Phase	3Phase
	cycles	50Hz	50Hz
Weight with standby,including accessory parts		376kg	386kg

1The figure within [] refers to the capability in the case of standby motor drive.
2ATP certified.
